LT86121TX
1. Description

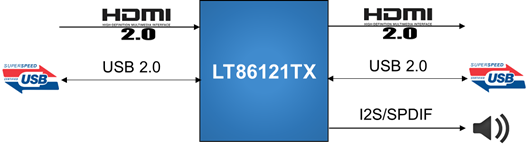

The LT86121TX is a high performance HDMI2.0 repeater designed for long cable application. It should be paired with LT86121RX for longest cable reach. In paired mode, several unique features can be enabled to reduce bandwidth requirement and optimize performance.
Both the HDMI2.0 input and output support data rate up to 6Gbps which provides sufficient bandwidth for 4k@60Hz video. Also HDCP2.2 is supported for data decryption.
In paired mode, YCbCr4:1:1 conversion and DSC encoder can be used to reduce data rate and hence bandwidth requirement. Furthermore, FEC can be activated to correct data error and help to enhance system error tolerance level. These unique techniques together will significantly extend transmission distance.
3ch-to-2ch conversion eliminates the necessary of 3 differential data pairs as required by HDMI specification. But data rate will increase by 50%. In applications of low and middle bandwidth, 2 data pairs are enough for data transmission.
Integrated USB repeater supports high speed, full speed and low speed modes. It is suitable for USB signal extension. User defined packet is also supported which provides a path for sideband data communication.
Two digital audio output interfaces are available, I2S and SPDIF. The I2S interface supports 2-ch LPCM and the SPDIF interface supports 8-ch LPCM or compressed audio, both at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the configuration I2C slave interface.

2. Features

• HDMI2.0 Receiver
• HDMI2.0 Transmitter
• Digital Audio Output
• Miscellaneous

3. Applications

• Active Cables
• Surveillance
• KVM Extension

LT86121TX
