LT7211B
1. Description

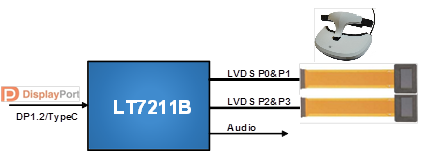

The LT7211B is a high performance Type-C/DP1.2 to LVDS chip for VR/Display application.
For DP1.2 input, LT7211B can be configured as 1,2,4 lane, also support lane swap function. Adaptive equalization makes it suitable for long cable application and the maximum bandwidth is up to 21.6Gbps
For LVDS output, LT7211B can be configured as single-port or dual-port or quad-port. For 2D video stream, the same video stream can be mapped to two separated panel, for 3D video format, left side data can be sent to one panel, and right side data can be sent to another panel.


2. Features

• Type-C
• DP1.2 Receiver
• Single/Dual-Port/Quad-Port LVDS Transmitter
• Miscellaneous

3. Application

• Docking Station
• Dongle
• VR
LT7211B
