LT8711EX-B
1. Description

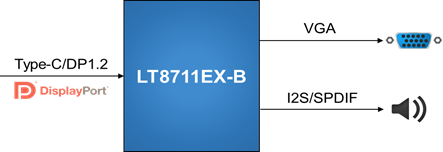

The LT8711EX-B is a high performance Type-C/DP1.2 to VGA converter, designed to connect a USB Type-C source or a DP1.2 source to a VGA sink.
The LT8711EX-B integrates a DP1.2 compliant receiver, and a high-speed triple-channel video DAC. Also, two CC controllers are included for CC communication to implement DP Alt Mode and power delivery function, one for upstream Type-C port and another for downstream port.
Two digital audio output interfaces are available, I2S and SPDIF. The I2S interface supports 2-ch LPCM and the SPDIF interface supports 8-ch LPCM or compressed audio, both at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the use of a dedicated configuration I2C slave interface.

2. Features

• USB Type-C
• DP1.2 Receiver
• Triple-Channel Video DAC
• Digital Audio Outputs
• Miscellaneous

3. Application

• Docking Station
• Dongle
LT8711EX-B
