LT8712EX
1. Description

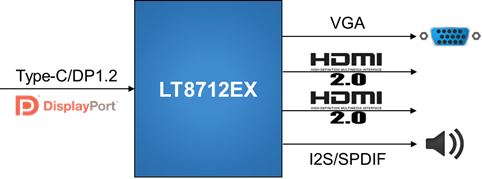

The LT8712EX is a high performance Type-C/DP1.2 to HDMI2.0/VGA converter, designed to connect a USB Type-C source or a DP1.2 source to a VGA sink and up to two HDMI2.0 sinks simultaneously.
The LT8712EX integrates a DP1.2 compliant receiver (MST capable), a high-speed triple-channel video DAC and two HDMI2.0 compliant transmitters. Also, two CC controllers are included for CC communication to implement DP Alt Mode and power delivery function, one for upstream Type-C port and another for downstream port.
Two digital audio output interfaces are available, I2S and SPDIF. Both support 8-ch LPCM or compressed audio at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the use of a dedicated configuration I2C slave interface.

2. Features

• USB Type-C
• DP1.2 Receiver
• Dual HDMI2.0 Transmitters
• Triple-Channel Video DAC
• Digital Audio Outputs
• Miscellaneous

3. Application

• Docking Station
• Video Hub
• Dongle
LT8712EX
