LT8911B
1. General Description

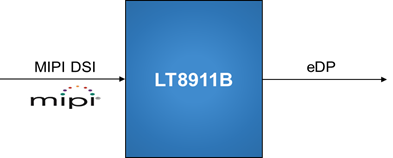

The Lontium LT8911B MIPI®DSI to eDP converter features a single-port MIPI receiver with 1 clock lane and 4 data lanes operating at maximum 1.5Gbps per data lane; a maximum input bandwidth of 6Gbps. The converter decodes the input MIPI® DSI 18/24/30/36-bit RGB packets and converts the formatted video data stream to a single-link VESA eDP1.4 compliant output with 1/2/4 configurable data lanes, supporting RBR(1.62Gbps) and HBR(2.7Gbps) link speeds. The build-in optional SSC function reduces EMI effect on EMI-concerned system application.

2. Features

• Single-Port MIPI® DSI Receiver
• eDP1.4 Transmitter
• Miscellaneous

3.APPLICATIONS

• Mobile systems
• Cellular handsets
• Digital video cameras
• Digital still cameras
• Personal media players
• Gaming
LT8911B
